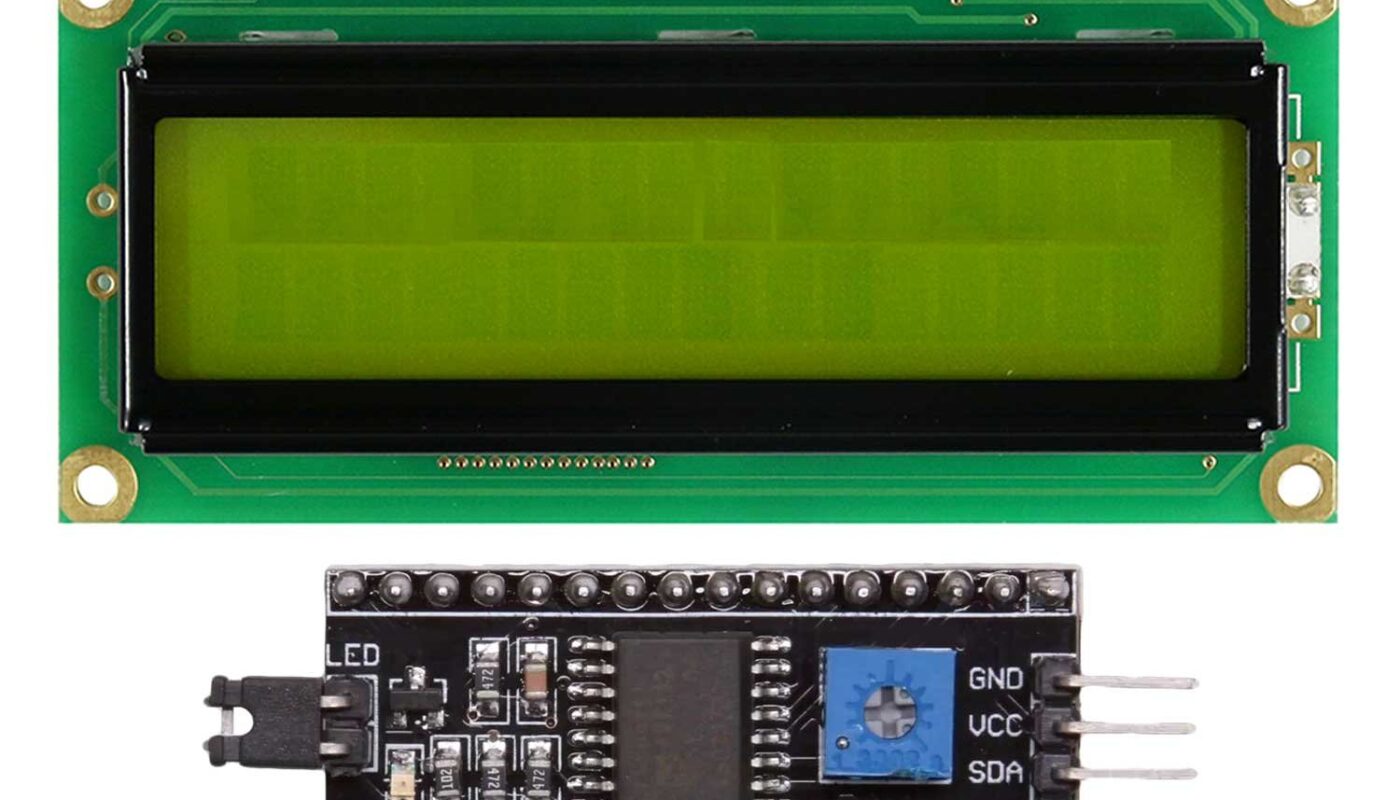

The I2C LCD 1602 display, featuring 16 characters and 2 lines, uses the I2C protocol for communication, which simplifies connections and coding significantly compared to other display types.
π Advantages of I2C LCD 1602
1. Simplified Wiring
- Efficient Connection: Requires only four wiresβtwo for I2C communication (SDA and SCL) and two for power (VCC and GND), reducing complexity and saving valuable GPIO pins.
2. User-Friendly Interface
- Library Support: Extensively supported by libraries across various platforms, facilitating easy programming and integration.
- Multi-Device Capability: Allows multiple devices to be connected over the same bus without needing additional pins.
3. Hardware Addressing
- Flexible Configuration: Supports multiple addresses on the same bus, enabling the use of several displays in one project without additional wiring.
π Disadvantages of I2C LCD 1602
1. Speed Limitations
- Data Rate: The I2C protocol is slower compared to direct parallel communication, which might affect display refresh rates in data-intensive applications.
2. Troubleshooting Challenges
- Bus Management: Potential complications like bus contention or signal interference can occur, requiring more sophisticated debugging efforts.
3. Increased Power Usage
- Continuous Signaling: The continuous signaling on the I2C bus can lead to higher power consumption compared to simpler direct connections.
π Comparison with Other Display Technologies
Parallel LCD Displays
- Pros: Faster updates due to direct control over all data lines.
- Cons: Utilizes more GPIO pins, complicating wiring and reducing available resources for other components.
SPI Displays
- Pros: Higher data rates than I2C; suitable for faster refreshing content.
- Cons: Uses more pins than I2C, though fewer than parallel displays.
OLED Displays
- Pros: Superior display quality with high contrast and wide viewing angles.
- Cons: Higher cost and potential for screen burn-in issues, affecting longevity.
E-Paper Displays
- Pros: Ultra-low power usage and excellent readability in direct sunlight.
- Cons: Very slow refresh rates, not suitable for dynamic content.
The I2C LCD 1602 is a versatile and practical choice for many applications, balancing ease of use with functional capabilities. However, the best choice of display will depend on specific project requirements, including speed, display quality, energy efficiency, and budget constraints.
