More Practical Applications of Capacitors

Capacitors are essential components in electronics, used for energy storage, filtering, timing, and signal processing. Below are various real-world applications with practical circuit examples:


1️⃣ Capacitors in Power Supply Filtering (Smoothing)

📌 Application: Stabilizes voltage in DC power supplies (e.g., phone chargers, adapters).
📌 How It Works:

  • A capacitor smooths out voltage fluctuations in rectified AC to provide steady DC.
  • It stores energy when voltage rises and releases it when voltage drops.

Example Circuit (Rectifier with Capacitor Filter)

   AC Input → [Bridge Rectifier] → [Capacitor] → DC Output
  • The capacitor (1000µF, 25V) smooths the rectified voltage.
  • Used in transformers, power adapters, and voltage regulators.

2️⃣ Capacitors in Decoupling (Bypass Capacitors)

📌 Application: Removes noise and voltage spikes in microcontroller circuits (Arduino, ESP32, Raspberry Pi).
📌 How It Works:

  • Placed between power (Vcc) and ground (GND) to absorb fluctuations.
  • Prevents high-frequency noise from affecting sensitive components.

Example Circuit (Microcontroller Power Stabilization)

   Vcc ---- [Capacitor 0.1µF] ---- GND
  • Large capacitors (10µF, 100µF) handle low-frequency noise.
  • Small capacitors (0.1µF, 1µF) filter high-frequency noise.

🔧 Use Cases:

  • Arduino, ESP32, STM32 circuits.
  • Sensor and IoT devices.

3️⃣ Capacitors in Audio Circuits (Coupling and Filtering)

📌 Application: Used in audio amplifiers, radio, and speaker crossovers.
📌 How It Works:

  • Coupling capacitors block DC while allowing AC (audio signals) to pass.
  • Filtering capacitors remove unwanted noise and improve sound quality.

Example Circuit (Audio Signal Coupling)

   Audio Source → [Capacitor 10µF] → Amplifier Input
  • Prevents DC bias from reaching the amplifier.
  • Common in guitar pedals, microphones, and radios.

4️⃣ Capacitors in Flash Camera Circuits (Energy Storage)

📌 Application: Used in camera flashes, electric fences, and pulsed lasers.
📌 How It Works:

  • A capacitor stores a large amount of energy and discharges it in an instant.
  • Provides a high-intensity flash when triggered.

Example Circuit (Flash Camera)

   Battery → [Step-up Converter] → [Capacitor 300µF] → Flash Tube
  • High-voltage capacitor stores charge and releases it instantly.

🔧 Use Cases:

  • Professional photography.
  • Electric fences.
  • Laser pulsing systems.

5️⃣ Capacitors in Timing Circuits (555 Timer IC)

📌 Application: Generates time delays, pulse width modulation (PWM), and oscillations.
📌 How It Works:

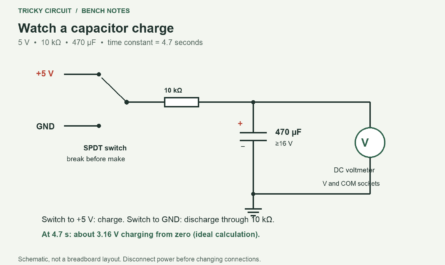

  • A capacitor charges/discharges through a resistor, determining the time delay.
  • Used in blinking LEDs, tone generators, and frequency controllers.

Example Circuit (LED Blinker using 555 Timer)

   555 Timer → [Capacitor + Resistor] → LED Blinking

🔧 Formula: T=1.1×R×CT = 1.1 \times R \times C

Use Cases:

  • Multivibrators (Astable, Monostable circuits).
  • Oscillators for sound generators.
  • Delays for triggering relays and alarms.

6️⃣ Capacitors in Motor Start and Run Circuits

📌 Application: Provides the initial torque boost in AC motors (fans, compressors, washing machines).
📌 How It Works:

  • A start capacitor gives extra power during startup.
  • A run capacitor improves efficiency during normal operation.

Example Circuit (Single-Phase Motor with Capacitor)

   AC Power → [Start Capacitor] → Motor Windings

🔧 Capacitor Types Used:

  • Electrolytic capacitors (Start capacitors).
  • Oil-filled capacitors (Run capacitors).

Use Cases:

  • Ceiling fans.
  • Refrigerators and compressors.
  • Air conditioners.

7️⃣ Capacitors in Wireless Charging (Resonant Circuits)

📌 Application: Transfers energy wirelessly in Qi wireless chargers, RFID tags, and NFC payments.
📌 How It Works:

  • A capacitor and inductor create a resonant circuit.
  • Magnetic fields transfer energy between coils wirelessly.

Example Circuit (Wireless Power Transfer)

   Transmitter Coil + [Capacitor] )) (( Receiver Coil + [Capacitor]
  • The capacitor tunes the circuit to match the resonance frequency.

🔧 Use Cases:

  • Smartphone wireless chargers.
  • EV wireless charging stations.
  • RFID access cards.

8️⃣ Capacitors in Supercapacitor Energy Storage

📌 Application: Acts as a backup power source in memory backup, solar systems, and regenerative braking.
📌 How It Works:

  • Supercapacitors charge and discharge rapidly, unlike batteries.
  • Provides instant power when needed.

Example Circuit (Backup Power for RTC Memory)

   Battery → [Supercapacitor] → RTC Module
  • Stores charge to keep real-time clocks running when power is lost.

🔧 Use Cases:

  • Solar energy storage.
  • Electric vehicles (regenerative braking).
  • Uninterruptible power supply (UPS) systems.

💡 Summary of Capacitor Applications

ApplicationFunction of Capacitor
Power Supply FilteringSmooths voltage fluctuations
Decoupling (Bypass Capacitor)Removes noise from power lines
Audio Coupling and FilteringBlocks DC and improves sound quality
Camera Flash CircuitsStores and releases high-energy pulses
555 Timer CircuitsControls timing in oscillators and delays
Motor Start & RunBoosts motor startup and efficiency
Wireless Charging & RFIDEnables contactless energy transfer
Supercapacitors (Energy Storage)Provides rapid energy bursts
