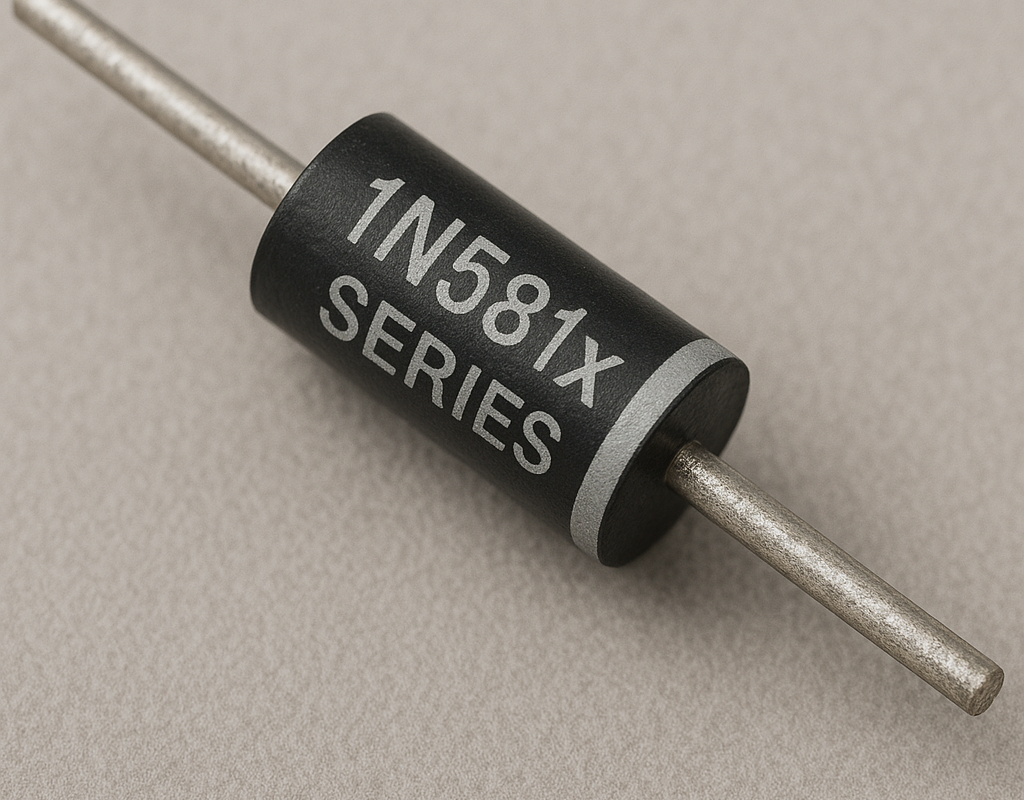

The 1N581x series consists of Schottky barrier rectifier diodes designed for fast switching, low voltage drop, and high-efficiency rectification. These diodes are widely used in power supplies, DC-DC converters, solar chargers, reverse polarity protection, and high-speed switching circuits.
🔹 1. What is the 1N581x Series?
- 1N581x diodes are Schottky diodes, meaning they have a lower forward voltage drop (~0.3V – 0.45V) compared to standard silicon diodes (~0.7V).
- Fast recovery time (~100ns) makes them ideal for high-frequency rectification.
- Can handle high current (1A – 3A) depending on the variant.
- Used in applications requiring high efficiency and low power loss.
📌 Key Features:
- Low forward voltage drop (VF ~ 0.3V – 0.45V).
- Fast switching speed (~100ns, better than standard rectifiers).
- Capable of handling high currents (1A to 3A).
- Better efficiency in low-voltage applications.
- Used in battery charging, solar panels, and high-frequency rectifiers.
📌 Common Applications:
- High-efficiency AC-DC and DC-DC converters.
- Reverse polarity protection in power circuits.
- Flyback diodes for inductive loads (motors, relays, solenoids).
- Switching power supplies (SMPS), inverters.
- Solar panel charge controllers.
🔹 2. 1N581x Series Comparison
| Diode | Max Reverse Voltage (VR) | Max Forward Current (IF) | Forward Voltage Drop (VF @ IF) | Best For |
|---|---|---|---|---|
| 1N5817 | 20V | 1A | 0.32V @ 1A | Low-voltage rectification (3.3V, 5V circuits) |
| 1N5818 | 30V | 1A | 0.37V @ 1A | General rectification for 5V, 9V circuits |
| 1N5819 | 40V | 1A | 0.45V @ 1A | Higher voltage rectification (12V circuits) |
| 1N5820 | 20V | 3A | 0.37V @ 3A | High-current 3.3V, 5V power supplies |
| 1N5821 | 30V | 3A | 0.42V @ 3A | High-current applications (DC-DC converters) |
| 1N5822 | 40V | 3A | 0.45V @ 3A | Higher voltage, high-current rectification |
📌 Verdict:
- 1N5817 to 1N5819 are best for low-current (1A) applications.
- 1N5820 to 1N5822 are best for high-power (3A) applications.
- 1N5819 & 1N5822 are the most commonly used due to their higher voltage ratings (40V).
🔹 3. 1N581x Pinout & Symbol
Each diode in the 1N581x series has two terminals:
| Pin | Symbol | Function |
|---|---|---|
| 1 | Anode (A) | Positive Terminal (Current enters here) |
| 2 | Cathode (K) | Negative Terminal (Current exits here) |

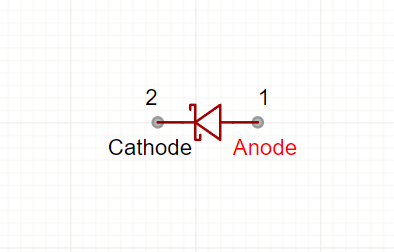

📌 Diode Symbol:
- Current flows from Anode to Cathode (Forward Bias).
- Blocks current in reverse direction (Reverse Bias).
- Cathode is marked with a white/silver band.
🔹 4. Using 1N581x for Rectification
📌 1N581x Schottky diodes are ideal for high-efficiency rectifiers in switching power supplies, DC-DC converters, and battery chargers.
✅ Example: High-Frequency Rectifier
| Component | Connection |
|---|---|
| Anode (A) | AC Input (Transformer Secondary) |
| Cathode (K) | Load Positive Terminal |
| Load Negative Terminal | Ground |
📌 Why use Schottky diodes for rectification?
- Lower forward voltage (0.3V – 0.45V) reduces power loss.
- Faster switching speed makes them efficient for high-frequency circuits.
✅ Full-Wave Bridge Rectifier
Four 1N581x diodes can be used in a bridge rectifier to convert AC to DC in high-efficiency power supplies.
📌 Common Use:
- DC-DC converters, fast rectifiers in SMPS power supplies.
🔹 5. Using 1N581x for Reverse Polarity Protection
📌 Protects circuits from incorrect power supply connections.
✅ Reverse Polarity Protection Circuit
| Component | Connection |
|---|---|
| Anode (A) | Power Supply Positive (VCC) |
| Cathode (K) | Circuit Input |
📌 How it works:
- Correct Polarity: Diode conducts, allowing power to flow.
- Wrong Polarity: Diode blocks reverse current, preventing circuit damage.
📌 Why use Schottky diodes instead of 1N400x?
- Lower voltage drop (~0.3V vs 0.7V) increases efficiency.
- Better for battery-powered devices.
🔹 6. Using 1N581x as a Flyback (Freewheeling) Diode
📌 Schottky diodes are used as flyback diodes in motors, relays, and solenoid circuits.
✅ Example: Relay Protection
| Component | Connection |
|---|---|
| Cathode (K) | Connected to Relay Coil Positive |
| Anode (A) | Connected to Relay Coil Negative (GND) |
📌 How it works:
- When the relay is turned ON, current flows normally.
- When turned OFF, the relay coil releases stored energy.
- 1N581x absorbs the energy, preventing voltage spikes.
📌 Schottky diodes are preferred for fast-switching inductive loads due to their lower recovery time.
🔹 7. Applications of 1N581x Series
✅ High-Efficiency Rectification – Used in switching power supplies (SMPS), DC-DC converters.
✅ Reverse Polarity Protection – Prevents damage from wrong power connections.
✅ Relay & Motor Protection – Works as a fast-switching flyback diode.
✅ Voltage Clamping – Absorbs voltage spikes in high-speed circuits.
✅ Battery Protection – Prevents reverse current in charging circuits.
🔹 8. 1N581x vs 1N400x (Silicon Rectifiers)
| Feature | 1N581x (Schottky Diode) | 1N400x (Silicon Diode) |
|---|---|---|
| Max Reverse Voltage | 20V – 40V | 50V – 1000V |
| Max Forward Current | 1A – 3A | 1A |
| Forward Voltage Drop (VF) | 0.3V – 0.45V | 0.7V |
| Switching Speed | Fast (~100ns) | Slow (~30µs) |
| Best For | High-efficiency power supplies | General rectification |
📌 Verdict:
- 1N581x is best for high-efficiency, low-voltage applications.
- 1N400x is better for higher voltage rectification (e.g., 110V, 220V AC rectification).
🎯 Conclusion
- 1N581x series is a set of Schottky diodes optimized for low-voltage, high-efficiency rectification.
- Lower forward voltage drop (~0.3V – 0.45V) reduces power loss.
- Faster switching speed (~100ns) makes them ideal for DC-DC converters, SMPS, and battery circuits.
- For high-power applications, use 1N5822 (3A, 40V).
