🔹 What is USB-to-UART?
A USB-to-UART (Universal Asynchronous Receiver-Transmitter) converter is a device or integrated circuit (IC) that allows communication between a computer’s USB port and serial (UART) devices, such as microcontrollers (Arduino, ESP8266, STM32), sensors, and embedded systems.
📌 Why is it needed?
- Modern computers do not have physical serial (RS-232) ports, but many microcontrollers use UART for communication.
- USB-to-UART converters bridge this gap, allowing serial communication over USB.
🔹 How USB-to-UART Works
A USB-to-UART converter takes USB signals from a computer and converts them to UART (TX/RX) signals that a microcontroller or other serial device can understand.
✅ Basic Working Principle
- USB Data is sent from the computer.
- The USB-to-UART chip converts the data to a serial format (UART TX/RX).
- The microcontroller receives the UART signals and responds.
- The USB-to-UART chip converts the microcontroller’s UART response back to USB for the computer.
📌 Most USB-to-UART converters also provide power (3.3V or 5V) to the microcontroller.
🔹 Common USB-to-UART Converters
| Converter | Manufacturer | Max Baud Rate | Voltage Support | Driver Support | Cost |
|---|---|---|---|---|---|

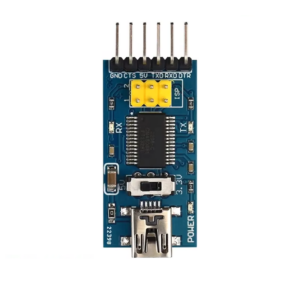

| FT232RL | FTDI | 3 Mbps | 3.3V / 5V | Native (Windows, macOS, Linux) | High (~$10) |

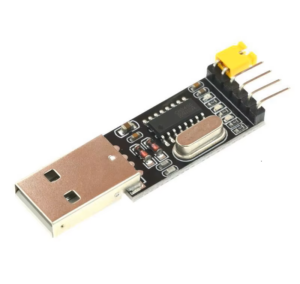

| CH340G | WCH | 2 Mbps | 3.3V / 5V | Needs manual driver (Windows/macOS) | Low (~$1-2) |

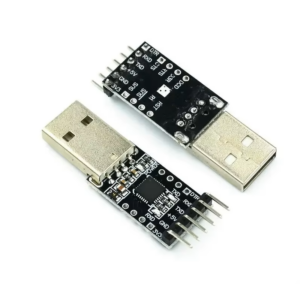

| CP2102 | Silicon Labs | 3 Mbps | 3.3V / 5V | Native (Windows, macOS, Linux) | Medium (~$5) |

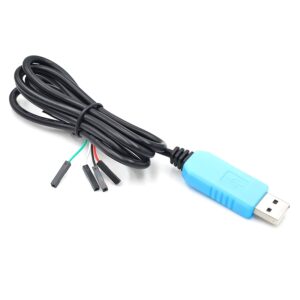

| PL2303 | Prolific | 1 Mbps | 3.3V / 5V | Needs manual driver (Windows/macOS) | Medium (~$5) |
📌 Verdict:
- FT232RL → Best for reliability and advanced features.
- CH340G → Cheapest option, but requires manual driver installation.
- CP2102 → Balanced between cost and performance.
🔹 Common Uses of USB-to-UART Converters
✅ Programming Microcontrollers – Upload code to ESP8266, ESP32, ATmega328P.
✅ Serial Debugging – Monitor sensor data, logs, and communication in embedded systems.
✅ Firmware Updates – Update firmware for routers, IoT devices, and STM32 chips.
✅ Interfacing with Industrial Equipment – Connect to RS-232-based machines.
✅ Communicating with Sensors – Read serial data from GPS modules, RFID readers.
🔹 How to Use a USB-to-UART Converter
🛠 Required Components
- USB-to-UART Module (FT232RL, CH340G, CP2102, etc.)
- Microcontroller (ESP8266, Arduino, STM32, etc.)
- Jumper Wires
- USB Cable
🛠 Basic Wiring
| USB-to-UART Pin | Microcontroller Pin |
|---|---|
| VCC (3.3V / 5V) | VCC (Power the MCU) |
| GND | GND (Common Ground) |
| TXD (Transmit Data) | RX (Receive Data) |
| RXD (Receive Data) | TX (Transmit Data) |
| DTR (Optional) | RESET (For Auto-Reset Feature) |
🔹 How to Install Drivers for USB-to-UART
✅ Windows
- Check if the device is detected (
Win + X → Device Manager → Ports). - If missing drivers:
- FT232RL: Download from FTDI.
- CH340G: Download from WCH.
- CP2102: Download from Silicon Labs.
- Restart your computer and check the COM port.
✅ macOS
- FT232RL and CP2102 work natively.
- CH340G needs a manual driver from WCH.
- Check with:bashCopyEdit
ls /dev/tty.*
✅ Linux
- Most USB-to-UART converters work natively.
- If needed, install drivers:bashCopyEdit
sudo apt update sudo apt install usbutils sudo modprobe ch341
🔹 Troubleshooting USB-to-UART Issues
| Issue | Possible Cause | Solution |
|---|---|---|
| Device not detected | Missing driver | Install the correct driver |
| Wrong COM port | Multiple USB devices | Check Device Manager or ls /dev/tty* |
| Upload fails | DTR pin not connected | Ensure DTR → RESET via 100nF capacitor |
| Garbled Serial Output | Incorrect baud rate | Set correct baud rate (e.g., 9600, 115200) |
🎯 Conclusion
- USB-to-UART converters enable communication between microcontrollers and computers.
- They are essential for flashing firmware, debugging serial data, and interfacing with embedded systems.
- Popular options include FT232RL, CH340G, and CP2102, each with pros and cons.
- Proper driver installation is necessary for smooth operation.
