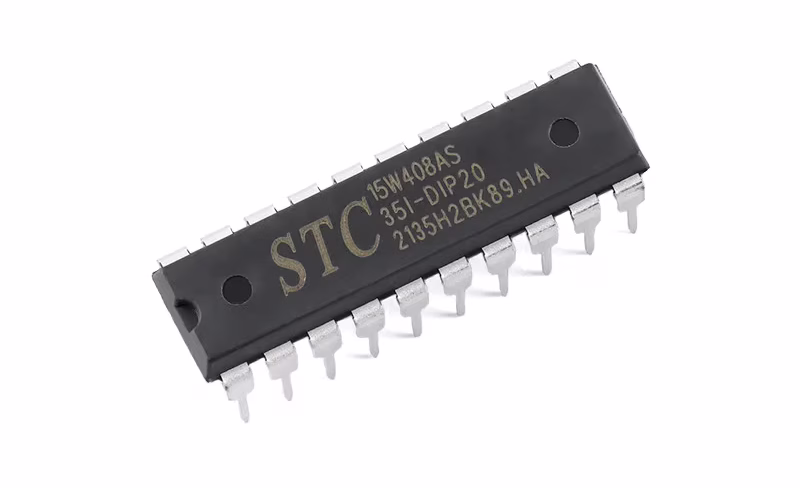

The STC15W408AS is an 8-bit microcontroller (MCU) developed by STC (ShengTong Technology Co., Ltd.), a Chinese company known for producing 8051-compatible microcontrollers. It is an enhanced version of the classic 8051 MCU, offering better performance, power efficiency, and integrated peripherals.
🔹 1. History and Development
- STC specializes in 8051-based microcontrollers with modern enhancements.
- The STC15W series was developed to improve on older STC89/90 series, adding lower power consumption, faster execution, and more peripherals.
- STC15W408AS belongs to the STC15W series, which is optimized for low-power and embedded applications.
🔹 2. STC15W408AS Microcontroller Overview
✅ Key Features
- 8051-Based Core: Fully compatible with standard MCS-51 architecture.
- Low Power: Ideal for battery-powered applications.
- High-Speed Execution: Supports 1T (single clock cycle) instruction execution.
- Flash Memory: 8KB of programmable Flash ROM.
- RAM: 512 bytes of on-chip SRAM.
- I/O Ports: 32 programmable I/O pins.
- Timers: 3 enhanced 16-bit timers/counters.
- PWM Support: Enhanced PWM outputs for motor control.
- ADC (Analog-to-Digital Converter): 10-bit ADC with up to 8 channels.
- UART Communication: Supports multiple serial interfaces.
- I²C and SPI Support: For external peripheral communication.
- Power Management: Multiple low-power modes for energy efficiency.
✅ Technical Specifications
| Feature | STC15W408AS |
|---|---|
| Core | 8051-Compatible |
| Flash Memory | 8KB |
| RAM | 512B |
| EEPROM | 512B |
| I/O Pins | 32 |
| Timers | 3x 16-bit |
| PWM Channels | 6 |
| ADC Resolution | 10-bit (8 channels) |
| UART | Yes (Multiplexed) |
| I²C/SPI | Yes |
| Operating Voltage | 2.4V – 5.5V |
| Clock Speed | Up to 35MHz |
| Power Modes | Low-Power Sleep Modes |
📌 Note: This MCU supports in-system programming (ISP) via a serial interface.
🔹 3. Applications of STC15W408AS
This microcontroller is widely used in embedded applications, such as:
✅ Home Automation – Smart switches, remote controls.
✅ Industrial Control – Motor drivers, sensor interfaces.
✅ IoT Devices – Wireless sensors, smart meters.
✅ Consumer Electronics – Remote controllers, alarm systems.
✅ Robotics – PWM motor control, servo driving.
✅ Power Management Systems – Energy-efficient controllers.
📌 Its low power consumption makes it ideal for battery-powered devices.
🔹 4. Comparison with Similar Microcontrollers
STC15W408AS vs ATmega328P (Arduino MCU)
| Feature | STC15W408AS | ATmega328P (Arduino) |
|---|---|---|
| Core | 8051-based | AVR (RISC) |
| Clock Speed | Up to 35MHz | 16MHz |
| Flash Memory | 8KB | 32KB |
| RAM | 512B | 2KB |
| ADC | 10-bit (8-ch) | 10-bit (6-ch) |
| PWM | 6 channels | 6 channels |
| UART/I2C/SPI | Yes | Yes |
| Power Consumption | Lower | Moderate |
| Ease of Programming | More complex (ISP) | Easier (Arduino IDE) |
📌 Verdict: STC15W408AS is more power-efficient, but ATmega328P has more memory and is easier to program with Arduino.
STC15W408AS vs STM32F103 (ARM Cortex-M3)
| Feature | STC15W408AS | STM32F103C8T6 |
|---|---|---|
| Core | 8051-based | ARM Cortex-M3 |
| Clock Speed | Up to 35MHz | 72MHz |
| Flash Memory | 8KB | 64KB |
| RAM | 512B | 20KB |
| ADC | 10-bit (8-ch) | 12-bit (16-ch) |
| PWM | 6 channels | 12 channels |
| UART/I2C/SPI | Yes | Yes (More interfaces) |
| Power Consumption | Lower | Higher |
📌 Verdict: The STM32F103 is much more powerful, but STC15W408AS is better for simpler, low-power applications.
🔹 5. Programming the STC15W408AS
✅ Required Tools
- STC-ISP Programmer (Windows-based software for serial programming).
- USB-to-Serial Converter (CH340G, CP2102, etc.).
- STC15W408AS Development Board (or standalone chip on a breadboard).
✅ Steps to Program
- Download STC-ISP software from the official STC website.
- Connect USB-to-Serial Converter:
- TX → RX of STC15W408AS
- RX → TX of STC15W408AS
- GND → GND
- VCC → 5V
- Open STC-ISP Software and load the HEX file.
- Reset the STC15W408AS to trigger programming mode.
- Upload the code and wait for confirmation.
📌 STC microcontrollers support C programming, and you can use Keil uVision for development.
🔹 6. Advantages & Disadvantages
✅ Advantages
✔ Low Power Consumption – Ideal for battery-operated devices.
✔ High-Speed Execution – 1T execution makes it faster than classic 8051 MCUs.
✔ Multiple Interfaces – UART, I²C, SPI, ADC, and PWM support.
✔ Cost-Effective – Cheaper than STM32 and ATmega MCUs.
✔ Good Peripheral Support – Works well for motor control, sensors, and industrial automation.
⚠️ Disadvantages
❌ Difficult to Program – Requires STC-ISP software and serial bootloader.
❌ Limited Community Support – Fewer tutorials compared to Arduino or STM32.
❌ Lower Flash & RAM – Not suitable for complex applications needing large memory.
🎯 Conclusion
The STC15W408AS is a powerful, low-cost, and low-power microcontroller based on the 8051 architecture. It is ideal for simple embedded applications, but not as beginner-friendly as Arduino or STM32. It is best suited for home automation, motor control, and industrial projects where power efficiency is important.
