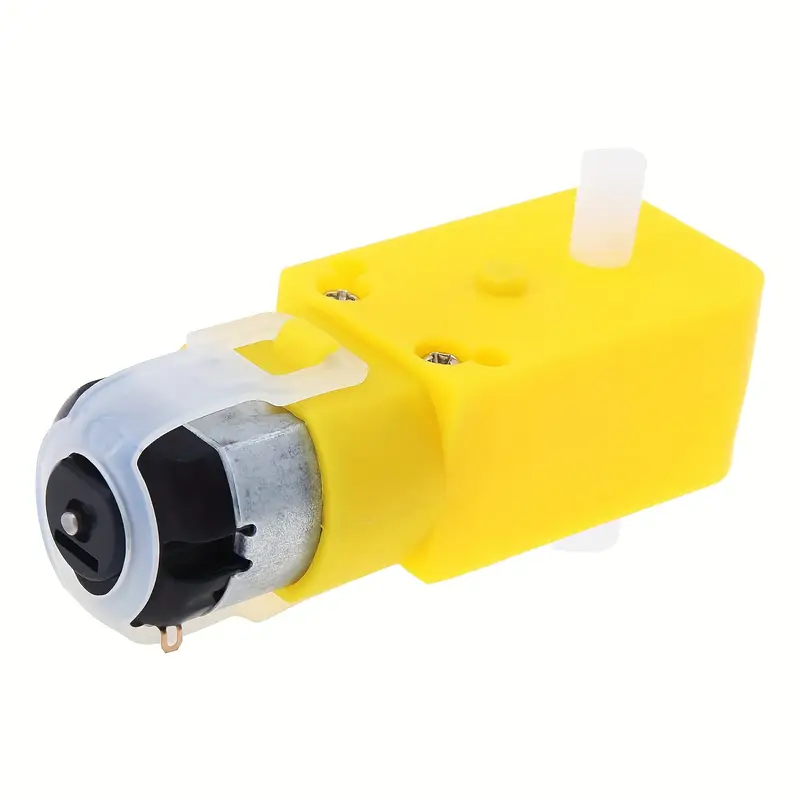

Overview of TT Motors

Key Features:

• Type: DC gear motor.
• Voltage: Typically operates at 3V to 6V.
• Speed: These motors usually offer speeds ranging from 100 RPM to 200 RPM when running at 6V, though this can vary depending on the specific model and voltage.
• Torque: The gearbox reduces the speed but increases the torque, making them powerful enough to drive the wheels or tracks of small robots.

Construction:

• Gearbox: Attached to the motor is a reduction gearbox. The most common configurations are plastic gears, which help reduce the cost and are sufficiently robust for light-duty applications.
• Motor Shaft: The output shaft from the gearbox usually has a double-flat or cross-cut profile, which makes attaching wheels, gears, or other mechanisms easy without the need for additional couplings.
• Size: Compact and easy to mount in small projects. Dimensions can vary slightly but are generally small enough for use in miniature robotics.

Applications:

• Educational Robotics: Widely used in educational kits for schools and workshops to teach basic robotics and engineering concepts.
• DIY Projects: Ideal for DIY enthusiasts building simple robotic vehicles or mechanisms.
• Hobbyist Projects: Common in hobbyist projects where cost, size, and ease of use are important factors.

Wiring and Control:

• Simple DC Operation: These motors can be driven by basic DC voltage from batteries, or controlled via a motor driver connected to a microcontroller like an Arduino to allow for more advanced functions like speed and direction control.
• Motor Driver Compatibility: Compatible with a variety of motor drivers, which can provide the necessary protection and control for direction and speed.

Example Setup with Arduino:

Here’s a simple example of how you can control a TT motor using an Arduino and a basic motor driver (like the L298N or L293D):

Circuit Components:

• Arduino Board
• TT Motor
• Motor Driver (e.g., L298N, L293D)
• External Power Supply (if required by the motor driver)
• Jumper wires

Basic Wiring Guide:

1. Connect the Motor to the Motor Driver: Attach the motor terminals to the outputs on the motor driver module.
2. Connect the Motor Driver to Arduino:
   • Connect the input pins on the motor driver to the Arduino digital pins.
   • Connect the enable pin on the motor driver to a PWM-capable pin on the Arduino if you want to control motor speed.
3. Power Supply:
   • Provide power to the motor driver. If using a model like the L298N, it might require a higher voltage, which should be connected to its dedicated power input.
   • Ensure the ground of the Arduino is connected to the ground of the motor driver.
4. Programming:
   • Write a simple sketch to control the motor via the Arduino, using digitalWrite() to set direction and analogWrite() to control speed if using PWM.

// Example Arduino Code for Controlling a TT Motor
int motorPin1 = 3; // Motor pin 1 connected to digital pin 3
int motorPin2 = 4; // Motor pin 2 connected to digital pin 4
int enablePin = 5; // PWM pin for speed control

void setup() {
    pinMode(motorPin1, OUTPUT);
    pinMode(motorPin2, OUTPUT);
    pinMode(enablePin, OUTPUT);
}

void loop() {
    digitalWrite(motorPin1, HIGH); // Set motor direction
    digitalWrite(motorPin2, LOW);
    analogWrite(enablePin, 128); // Set speed (0-255)
    delay(1000);
    digitalWrite(motorPin1, LOW); // Reverse direction
    digitalWrite(motorPin2, HIGH);
    delay(1000);
}

TT motors are a great choice for those starting out in robotics or for any project where size, cost, and simplicity are key considerations.
