MOC3021: Optocoupler with Triac Output for AC Switching

The MOC3021 is an opto-isolated Triac driver designed for safe AC switching. It is commonly used in solid-state relays (SSR), dimmers, motor speed control, and microcontroller-based AC control circuits.

🔹 1. What is the MOC3021?

• The MOC3021 is an optocoupler with an infrared LED and a zero-crossing Triac driver.
• It provides electrical isolation between a low-voltage microcontroller (Arduino, ESP32, STM32, etc.) and high-voltage AC loads.
• When the internal LED is activated, the Triac driver switches ON, triggering an external Triac to control AC power.

📌 Key Features:

• Electrical isolation up to 7.5kV.
• Can switch AC loads up to 400V.
• No direct electrical connection between control and AC circuits.
• Eliminates switching noise and protects microcontrollers from high voltage spikes.
• Zero-Crossing Version (MOC3061, MOC3063) is also available for lower EMI (Electromagnetic Interference).

📌 Why use it?

• Safe AC load switching using low-voltage logic signals.
• Microcontroller protection from high-voltage AC circuits.
• Silent solid-state switching (no mechanical relay noise).

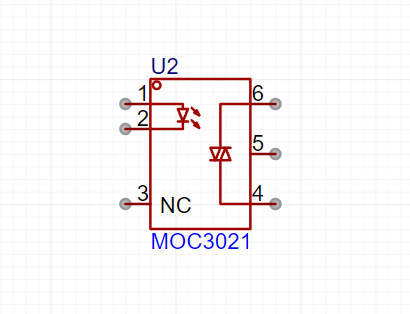

🔹 2. MOC3021 Pinout & Functions

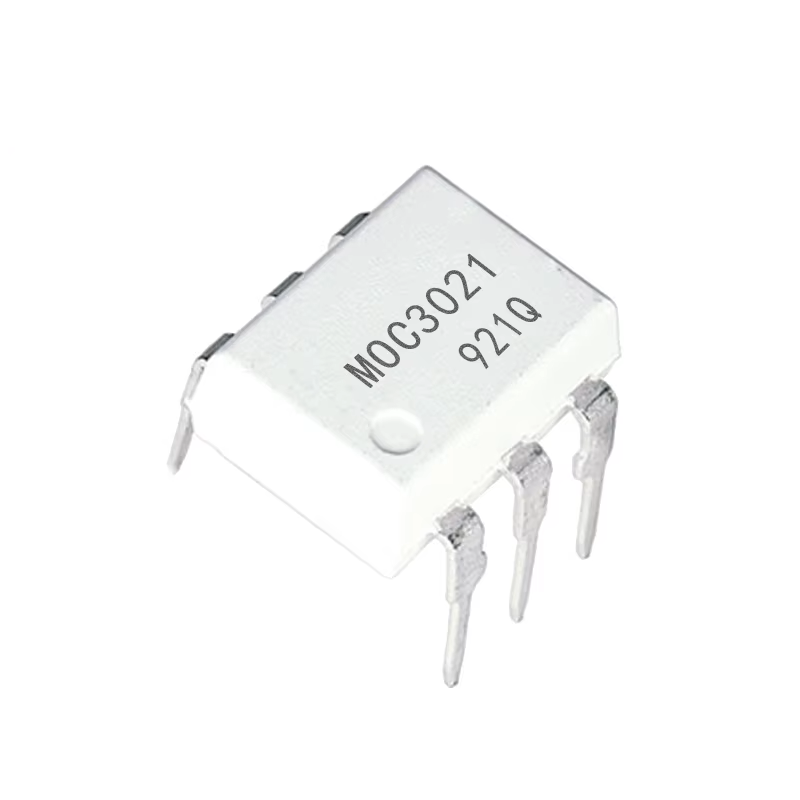

The MOC3021 comes in a 6-pin DIP package.

📌 How it works:

• Pins 1 & 2 → Control the internal LED.
• When the LED is ON, the Triac driver switches ON (Pins 4 & 6).
• The external Triac gets triggered, switching AC power to the load.

🔹 3. How MOC3021 Works

• A microcontroller sends a signal to the internal LED (Pins 1 & 2).
• The LED activates the phototriac driver.
• The Triac output (Pins 4 & 6) triggers an external Triac.
• The external Triac allows AC current to flow, turning ON the connected lamp, motor, heater, or any AC load.

📌 Unlike mechanical relays, MOC3021 allows for fast and noise-free switching.

🔹 4. Using MOC3021 to Control an AC Load

🛠 Required Components

• 1x MOC3021 Optocoupler
• 1x External TRIAC (e.g., BT136, BT138)
• 1x 330Ω Resistor (LED Current Limit)
• 1x 470Ω Resistor (Gate Resistor for Triac)
• 1x 10kΩ Resistor (Pull-down for Triac)
• 1x AC Load (e.g., Bulb, Fan, Heater)
• 1x Arduino or ESP32
• AC Power Source (110V / 220V)

🛠 Wiring Diagram

📌 ⚠ WARNING:

• Never work with live AC circuits without proper isolation and safety precautions.
• Use a fuse for protection.

🔹 5. Arduino Code for MOC3021

#define OPTOCOUPLER 7  // Connects to MOC3021 Anode (Pin 1)

void setup() {
    pinMode(OPTOCOUPLER, OUTPUT);
}

void loop() {
    digitalWrite(OPTOCOUPLER, HIGH);  // Turn ON AC Load
    delay(5000);  // Wait 5 seconds
    digitalWrite(OPTOCOUPLER, LOW);   // Turn OFF AC Load
    delay(5000);
}

📌 What happens?

• The Arduino turns ON/OFF the MOC3021 LED.
• The LED triggers the internal Triac driver.
• The external Triac switches ON the AC load.

🔹 6. Using MOC3021 for AC Light Dimming

📌 AC dimming is possible using phase-angle control (PWM + Zero-Crossing Detection).

For AC dimming, use:

• MOC3021 + External TRIAC + Zero-Crossing Detector (H11AA1).
• Adjust phase delay using PWM signals from Arduino.

📌 For better dimming, use MOC3061/MOC3063, which have zero-crossing detection built-in.

🔹 7. Applications of MOC3021

✅ Microcontroller-Based AC Switching – Controls lamps, motors, heaters.
✅ Solid-State Relays (SSR) – Used in silent, fast-switching AC relays.
✅ AC Motor Speed Control – Used in fan speed regulators.
✅ Dimmer Circuits – Controls light brightness using phase-angle control.
✅ Industrial Automation – Isolates low-voltage control systems from AC power.

🔹 8. MOC3021 vs Other Optocouplers

📌 Verdict:

• MOC3021 is best for general AC switching.
• MOC3061 is better for noise-free AC dimming (zero-crossing switching).
• PC817 is for low-power DC signal isolation.

🎯 Conclusion

• MOC3021 is an optocoupler with a built-in Triac driver, designed for safe AC switching.
• Used in solid-state relays, motor control, dimmers, and industrial automation.
• Requires an external Triac (e.g., BT136, BT138) to control high-power AC loads.
• Safer and more reliable than mechanical relays.
