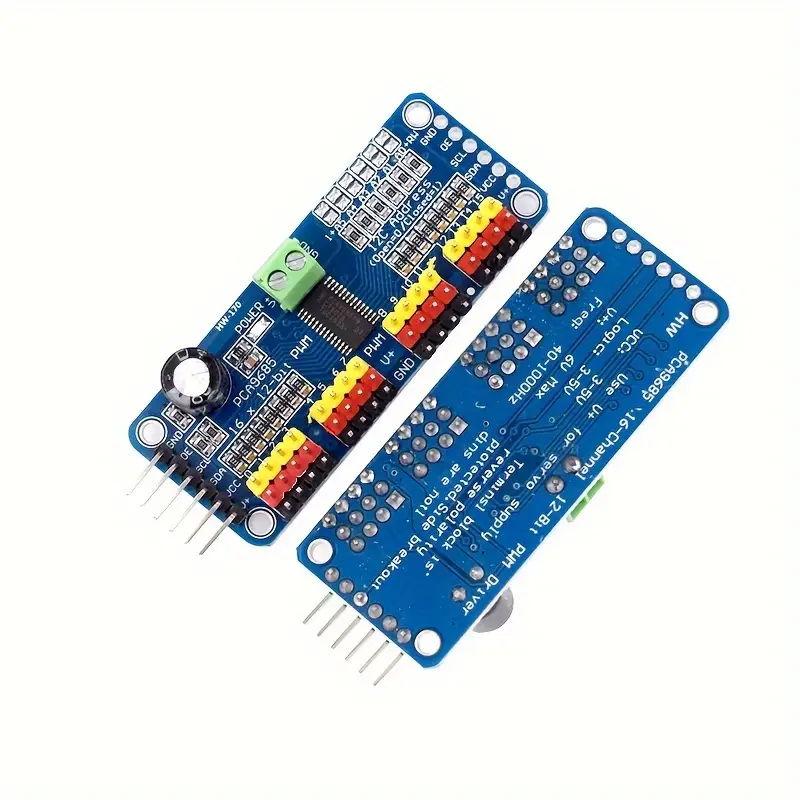

The PCA9685 is a 16-channel PWM controller that uses I2C to talk to your microcontroller (Arduino, ESP32, Raspberry Pi, etc).
✅ It offloads all the servo/PWM work so your Arduino doesn’t have to generate precise PWM signals itself. Super efficient!
💥 Why It’s a Game-Changer for Multi-Servo Projects
🔢 1. 16 PWM Outputs – From Just 2 Pins!
You can control up to 16 servos using only two I2C pins (SDA + SCL).
No more running out of PWM pins on your Arduino!
💡 Bonus: You can chain up to 62 PCA9685s = 992 servos total! 🤯
🧮 2. Hardware-Based PWM – No Blocking, No Lag
Unlike analogWrite() or Servo.h, the PCA9685 uses independent timing hardware.
Your Arduino stays free to do logic, sensors, and decision-making 🧠💡
🚫 No more jittery servos or timing conflicts in complex robots.
⚙️ 3. Precision Control
- 12-bit resolution = 4096 PWM steps
- Smooth servo movement and fine-grain control
- Also works for dimming LEDs, RGB lighting, laser modules, etc.
🔌 4. External Power Support = Stronger Servos
You can power your servos directly through the PCA9685’s V+ pin with a dedicated power source (e.g. 5V 2A or more).
No need to burden the Arduino’s regulator.
🛠️ Less power dropouts, stronger torque, no resets.
🤖 Use Case Examples
| Project Type | Why PCA9685 Rocks 💥 |
|---|---|
| Humanoid Robot | Many servos = smooth motion |
| Quadruped / Hexapod Bot | Leg movement coordination |
| Robotic Arm | Independent axis control |
| Animatronics | Smooth facial expressions 😮 |
| RC Vehicles | Control servos + LED lights |

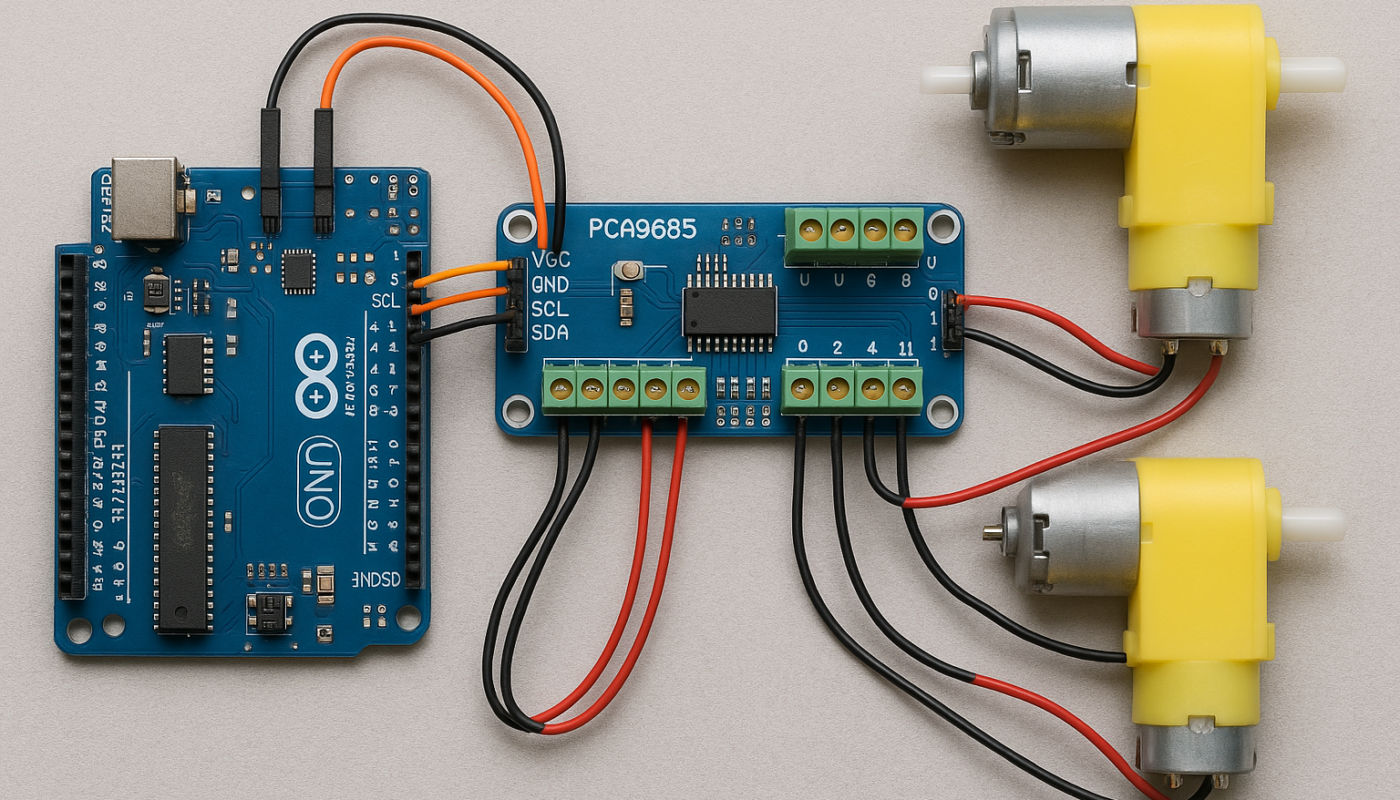

🧰 Example Arduino Setup
#include <Wire.h>
#include <Adafruit_PWMServoDriver.h>
Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver(); // default I2C address 0x40
void setup() {
Serial.begin(9600);
pwm.begin();
pwm.setPWMFreq(60); // 60 Hz is great for servos
}
void loop() {
pwm.setPWM(0, 0, 150); // move servo 0 to 0°
delay(500);
pwm.setPWM(0, 0, 600); // move servo 0 to ~180°
delay(500);
}
🧠 TL;DR — Why It’s a MUST-HAVE:
✅ Saves PWM pins
✅ Handles PWM timing independently
✅ Scales up to 992 servos 🤯
✅ More reliable & cleaner code
✅ Supports external servo power
✅ Super compatible (Arduino, ESP32, Pi…)
