ATtiny

Wiring tips to ensure your ATtiny (13/25/45/85) runs reliably in any project. 🤖⚡

0

âś… Must-Have Components for Stable Operation

ComponentPurpose
ATtiny MCUThe brains of your project 🧠
Power Supply (3.3V or 5V)Stable voltage source from battery, regulator, or USB
0.1 µF Ceramic CapacitorBypass capacitor between Vcc and GND for power noise filtering ⚡
Reset Button (optional)To manually reset the chip (only if RESET pin is active)
10kΩ Pull-Up Resistor on RESETPrevents false resets if RESET is not disabled via fuse bits
ISP Series Resistors (optional)~1kΩ protection when programming ATtiny in-circuit

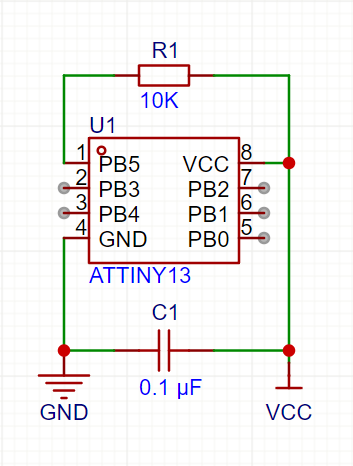

🧩 Basic Stable Circuit (ATtiny85 Example)

  • Use INPUT_PULLUP for buttons to avoid external resistors.
  • Keep the power lines clean and tight!

🔋 Power Supply Options

Power SourceNotes
CR2032 coin cellFor short-term portable use
Li-ion + LDO (AMS1117)Stable 3.3V output, good for sensors & WiFi
USB 5V (via regulator)Great for dev boards or breadboarding

📦 Recommended Extras for Smooth Operation

ComponentWhy It Helps
10 µF Electrolytic CapAdditional power smoothing, good for servos
Low ESR Ceramic CapFilters high-frequency noise
Perfboard or PCBAvoids flaky connections from breadboards

🛠️ Optional Peripherals — What to Add

PeripheralAdd This
LEDs220–330Ω resistors on each pin
ButtonsUse INPUT_PULLUP or external 10kΩ resistor
OLED / LCDAdd 0.1µF and 10µF on Vcc near display
Servos / MotorsUse separate power + decoupling caps
