A Practical Guide for Makers, Engineers, and the SMD-Curious
🔍 What Does It Mean?
| Term | Meaning |
|---|---|
| SOIC | Small Outline Integrated Circuit — a surface-mount package |
| 14 | 14 pins total (7 per side) |
| N | Narrow body — usually ~3.9 mm width |
SOIC-14N is a common SMD package used for a wide variety of integrated circuits. It’s compact, easy to solder (with practice), and fits perfectly on modern PCBs.

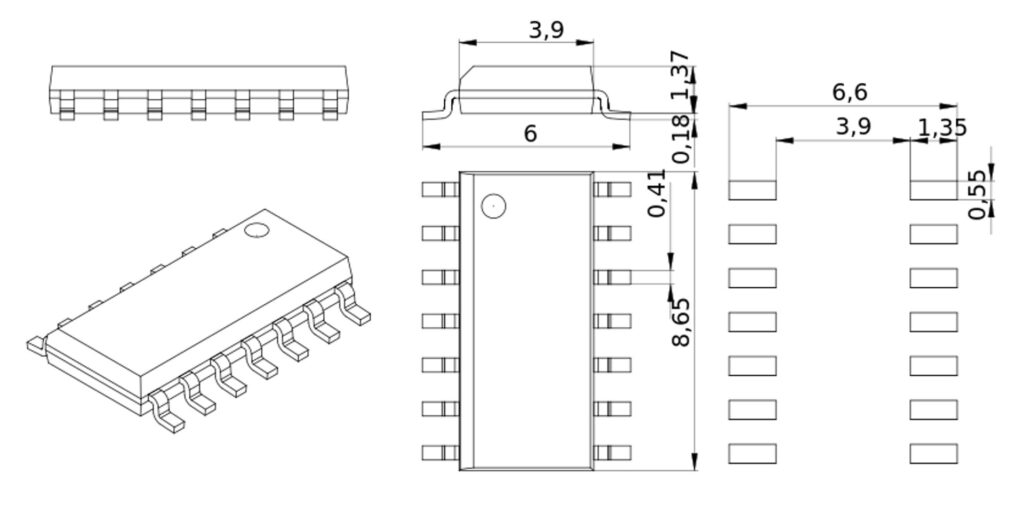

📏 Physical Specs (JEDEC MS-012 Standard)
- Body width: ~3.9 mm (narrow version)
- Length: ~8.7 mm
- Pin pitch: 1.27 mm
- Height: ~1.5 mm
- Lead type: gull-wing, for surface mounting
- Pin numbering: counterclockwise, starting from top-left
🧰 What Kind of Chips Come in SOIC-14N?
| Chip Type | Examples in SOIC-14N | Application |
|---|---|---|
| Operational Amplifiers | TL074, LM324 | Signal processing, filtering |
| Logic ICs | 74HC00, 74LS14 | NAND gates, inverters, flip-flops |
| Timers | NE556 | Dual 555-based timing and PWM |
| Microcontrollers | ATtiny84 | Compact automation and controls |
| EEPROM / Flash | 24LC256, 93C46 | Data storage, calibration constants |
| Interface ICs | MAX232 | Serial communication level shifting |
| Motor Drivers | L293D | Small DC/stepper motor control |
⚙️ Why Is SOIC-14N Awesome?
- Easy to handle and solder compared to smaller SMD packages
- Widely supported by PCB design tools and breakout boards
- Available in thousands of variants
- Often cheaper than DIP versions
- Great for prototyping, space-limited boards, and production
🔧 Real-World Use Cases
- DIY sensors using ATtiny84 and a few passives
- Audio preamps using TL074 quad op-amps
- Logic level detection with 74HC14
- I2C EEPROM for parameter storage in hobby robots
- Basic timer-based blinking with NE556
🔥 Pro Tips
- Use a SOIC-to-DIP adapter for breadboarding
- Solder with flux and a fine-tipped iron or hot air
- Avoid overheating — pins are small and close together
- Reflow with a skillet if you’re feeling brave 😅
- Label your chips — SOIC parts look suspiciously identical at 2am
🧪 Prototyping Advice
SOIC-14N is a sweet spot — compact, yet manageable. It’s often the first step into SMD soldering for beginners. Unlike TSSOP or QFN packages, it’s friendly, forgiving, and doesn’t demand superhuman vision.
🎯 Summary
SOIC-14N = Versatile + Reliable + Maker-Friendly.
Whether you’re building a signal amplifier, a blink-o-matic timer, or just learning SMD, this form factor won’t disappoint.
